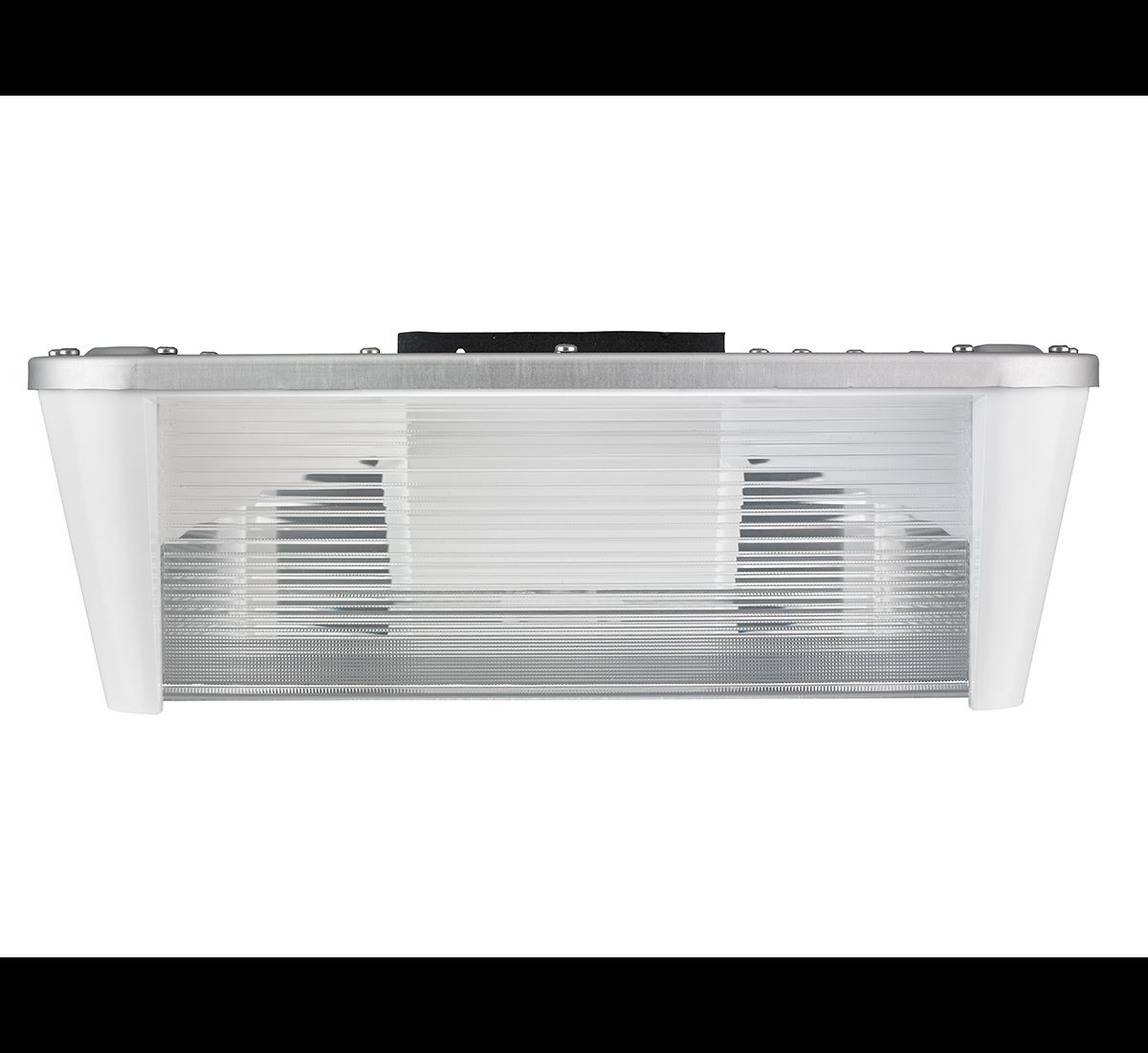

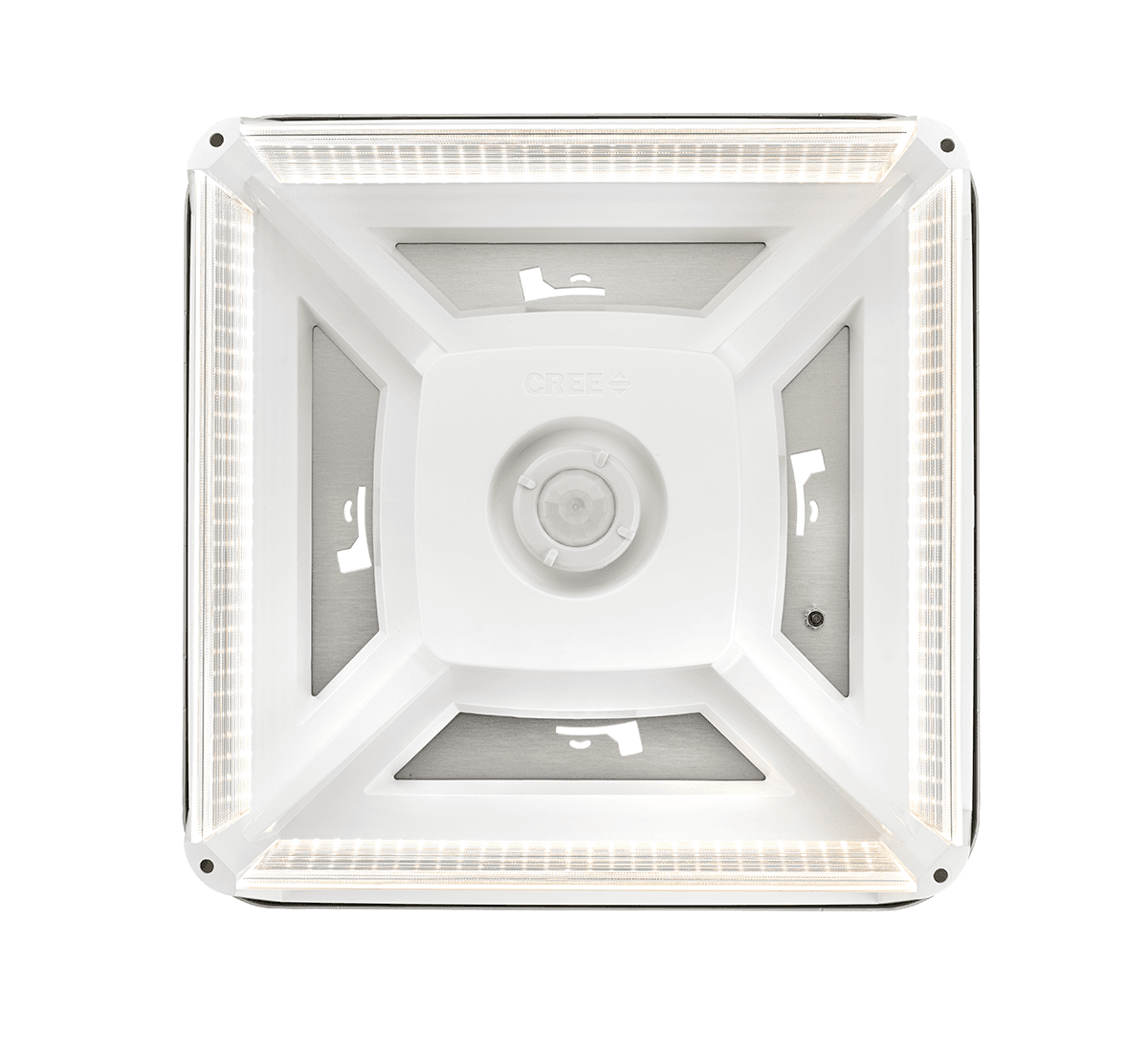

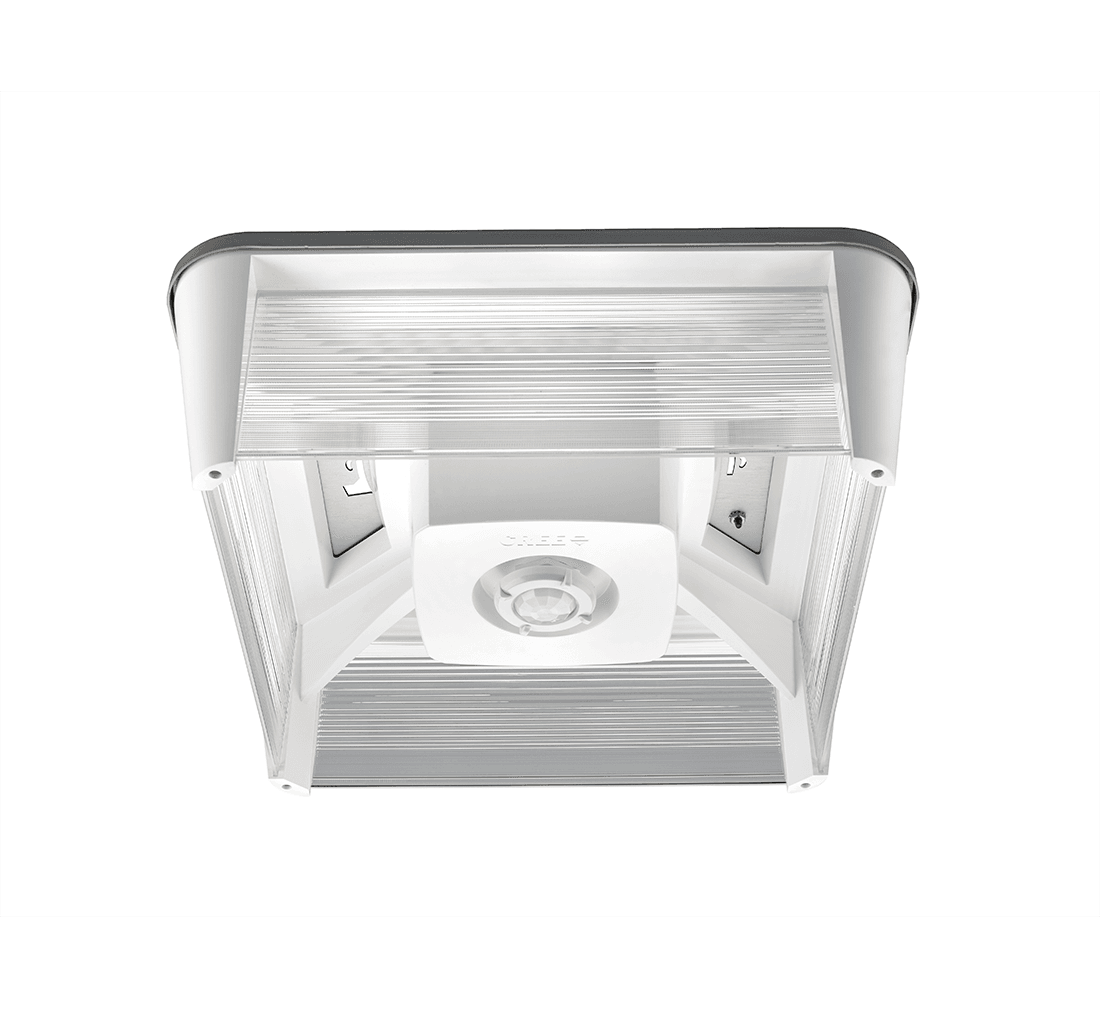

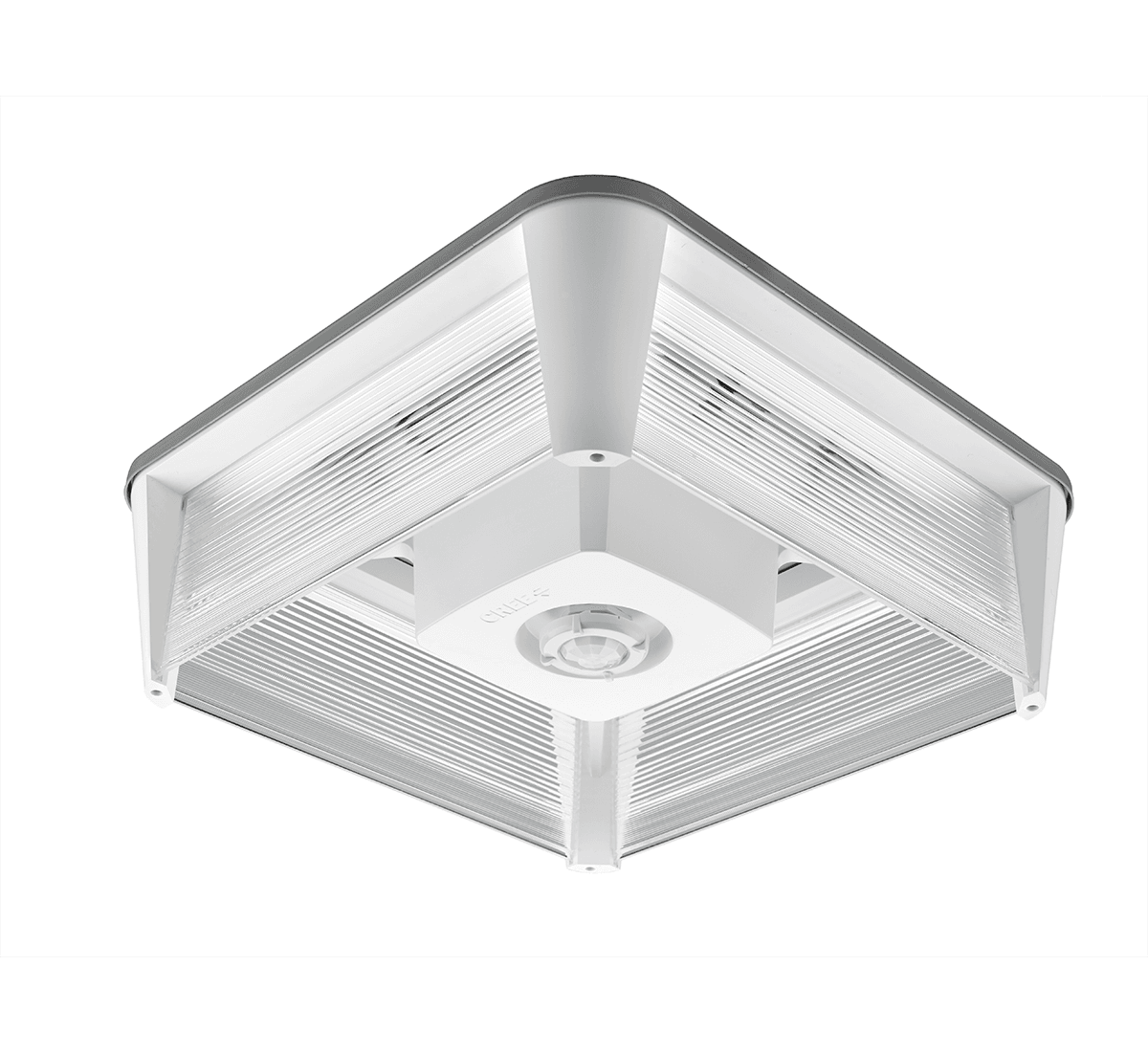

IG Series

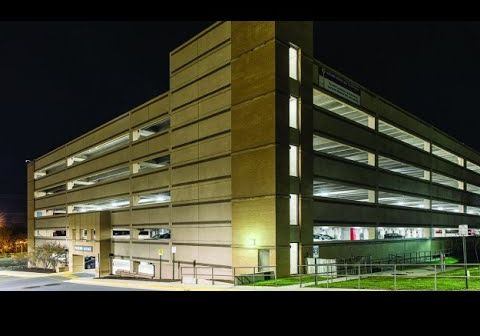

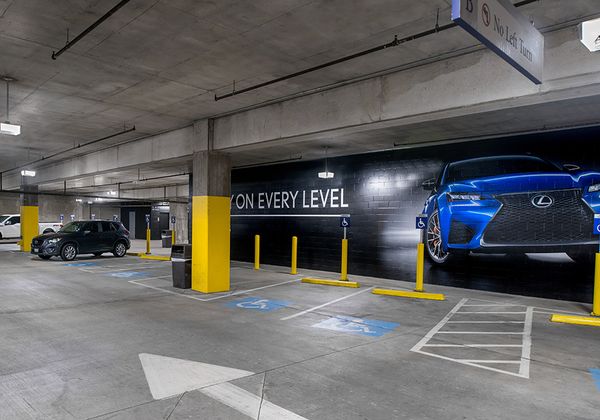

With our innovative optical waveguide platform, IG Series redefines parking garage lighting by delivering unprecedented low-glare illumination with 5.4% uplight, decreased LED source luminance and exceptional energy savings. Wireless controls with Bluetooth technology and from Synapse are also available.
10 Year Warranty
Designed for Comfort
DLC Premium
Energy Efficient
Intelligent Options
Wet Location
Product Details
Light Output: 3,860 – 10,350 lumens
Wattage: 33 – 76 watts
Replaces: Up to 250W PSMH
Efficacy: Up to 136 LPW
Limited Warranty: 10-year
Wattage: 33 – 76 watts
Replaces: Up to 250W PSMH
Efficacy: Up to 136 LPW
Limited Warranty: 10-year
CRI Options: 80 CRI
CCT Options: 3000K, 3500K, 4000K, 5700K
Finish Color: White
IP65 and IP66 rated enclosure
Meets IES RP-8-21, IES Security Zone G-1-03
DLC Premium
CCT Options: 3000K, 3500K, 4000K, 5700K
Finish Color: White
IP65 and IP66 rated enclosure
Meets IES RP-8-21, IES Security Zone G-1-03
DLC Premium
Synapse and BML control options
0-10V dimming standard
Assembled in the USA by Cree Lighting from US and imported parts
Suitable for wet locations
Utilizes WaveMax® Technology
0-10V dimming standard
Assembled in the USA by Cree Lighting from US and imported parts
Suitable for wet locations
Utilizes WaveMax® Technology
- Ordering Matrix
- Certifications
| Family | Series | Mounting | Optic | Lumen Package | CCT/CRI | Voltage | Color Options | Options |
|---|---|---|---|---|---|---|---|---|
| IG | B | NMNo Mount | 5SType V Short | 4L 4,000 Lumens 7L 7,000 Lumens 10L 10,000 Lumens | 30K8 3000K, 80 CRI 35K8 3500K,80 CRI 40K8 4000K, 80 CRI 57K8 5700K, 80 CRI | UL Universal 120-277V UH Universal 347-480V | WHWhite | BML Bluetooth® Technology Enabled Multi- Level Sensor - Utilizes a multifunction sensor - Available only with UL voltage - Refer to BML spec sheet for details - 8-20' sensor lens installed on luminaire; 20-40' sensor lens and aisle shroud included - Not available with Synapse controls SWC Synapse® Wireless Controller - Provides real-time lighting control with utility-grade power monitoring (+/-2%) - Uses a highly reliable SimplySNAP mesh network - SimplySNAP Gateway is required - Not available with UH voltage or BML or SWS options SWS Synapse® Wireless Controller with Network Sensor - Utilizes a multifunction sensor - Adds customizable sensor for motion or ambient light detection with use of Daylight Harvesting Accessory - Sensor configured for motion sensing as factory default - SimplySNAP Gateway is required - Not available with UH voltage or BML or SWC options |
Downloads
- Spec Sheets
- IES & Design Files
- Installation Guides
- Technical Documents
- Warranty
- Literature
Accessories & Options
| Product Image | Order # | Description | Spec Sheet | Install Guide |
|---|---|---|---|---|
 | IG-BG | Bird Shroud Kit | Download File | |
 | BMS-GW-002 | Building Management System (BMS) Gateway | Download File | Download File |
 | CBSSW-450-002 | Central Base Station | Download File | Download File |
 | KIT-ANT420SM | Outdoor Antenna | Download File | Download File |
 | KIT-ANT360 | Outdoor Antenna | Download File | Download File |
 | KIT-ANT600 | Outdoor Antenna | Download File | Download File |
 | SS450-002 | On-Site Controller | Download File | Download File |
 | IG-SLS | Snap-On Side Light Shield | Download File | |
 | WSW-08-PS | Wireless Light Switch (Eight-Button) | Download File | Download File |
 | WSW-02-PS | Wireless Light Switch (Two-Button) | Download File | Download File |
 | WSN-DPM | Wireless Sensor | Download File | Download File |
 | XA-PS12KIT | Pendant Mounting Kits | Download File | |
| XA-PS18KIT | Pendant Mounting Kits | Download File | |
| XA-PS22KIT | Pendant Mounting Kits | Download File |
