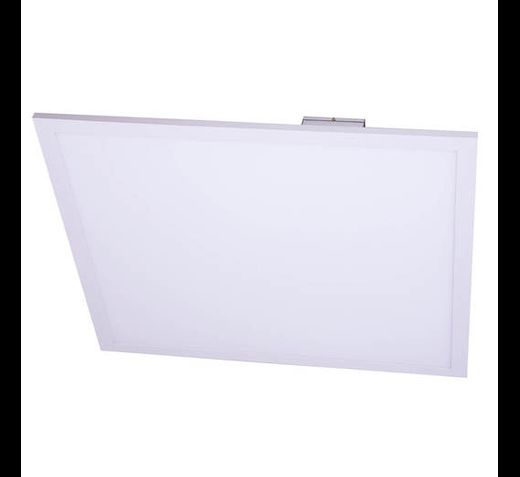

C-Lite® FP-SCCT Series

Our C-Lite Backlit LED Selectable Flat Panel with optional Emergency Backup delivers versatility and value. Featuring both field selectable lumen packages and CCT (3500K / 4000K / 5000K), our Flat Panel offers nine possible fixtures in a single box. Backed with a 5-year limited warranty, from a trusted brand.

5-year-warranty
5 Year Warranty
cct-selectable
CCT Selectable
damp-location
Damp Location
energy-efficient
Energy Efficient
great-dimming
Great Dimming
budget-freindly
Great Value
Spec Sheets
Design Files
Installation Guides
Overview
Talk to An Expert

Product Details


Light Output: 2,750 – 5,075 Lumens
Wattage: 20 – 40 Watts
Replaces: Up to 4x F32T8
Efficacy: Up to 147 LPW
Limited Warranty: 5-year
CRI Options: 80 CRI
CCT Options: 3500K, 4000K, 5000K, Color Selectable
Finish Color: White
0-10V Dimming
cETLus Listed
Suitable for damp locations
Optional Emergency Back-Up Option

NameVersionSeriesLumen PackageCCTVoltageColor OptionsOptionsCase Pack QTY
C-TR
D
FP14 Flat Panel 1' x 4'
S35L 3900 Lumens (30W)*
3420 Lumens (25W)
2750 Lumens (20W)
SCCT Selectable CCT (Color Temperature) & Wattage
3500K
4000K*
5000K
ULUniversal 120-277V Operation
WHWhite
[Blank] w/out Emergency backup option
EB Emergency Battery Backup (960 lumens)
- Provides 90 minutes of emergency operation
2 2-Pack
- Required when EB option is not selected
- Not available with EB option
C-TR
D
FP22 Flat Panel 2' x 2'
S37L
4150 Lumens (30W)*
3640 Lumens (25W)
2940 Lumens (20W)
SCCT Selectable CCT (Color Temperature) & Wattage
3500K
4000K*
5000K
ULUniversal 120-277V Operation
WH White
[Blank] w/out Emergency backup option
EB Emergency Battery Backup (900 lumens)
- Provides 90 minutes of emergency operation
2 2-Pack
- Required when EB option is not selected
- Not available with EB option
C-TR
D
FP24 Flat Panel 2' x 4'
S58L
5075 Lumens (40W)*
4640 Lumens (35W)
4030 Lumens (30W)
SCCT Selectable CCT (Color Temperature) & Wattage
3500K
4000K*
5000K
ULUniversal 120-277V Operation
WH White
[Blank] w/out Emergency backup option
EB Emergency Battery Backup (900 lumens)
- Provides 90 minutes of emergency operation
2 2-Pack
- Required when EB option is not selected
- Not available with EB option
C-TR
C
FP14 Flat Panel 1' x 4'
S35L
3590 Lumens (28W)*
3040 Lumens (24W)
2280 Lumens (18W)
SCCT Selectable CCT (Color Temperature) & Wattage
3500K
4000K
5000K
ULUniversal 120-277V Operation
WHWhite
EB Emergency Battery Backup (1500 lumens)
- Provides 90 minutes of emergency operation
C-TR
C
FP22 Flat Panel 2' x 2'
S37L
3850 Lumens (30W)*
3040 Lumens (24W)
2280 Lumens (18W)
SCCT Selectable CCT (Color Temperature) & Wattage
3500K
4000K
5000K
ULUniversal 120-277V Operation
WHWhite
[Blank] w/out Emergency backup option
EB Emergency Battery Backup (1500 lumens)
- Provides 90 minutes of emergency operation
2 2-Pack
- Not available with EB option
C-TR
C
FP24 Flat Panel 2' x 4'
S58L
5625 Lumens (45W)*
5000 Lumens (40W)
3750 Lumens (30W)
*Default settings at time of shipping are maximum lumen output and 4000K CCT.
SCCT Selectable CCT (Color Temperature) & Wattage
3500K
4000K
5000K
ULUniversal 120-277V Operation
WHWhite
[Blank] w/out Emergency backup option
EB Emergency Battery Backup (1500 lumens)
- Provides 90 minutes of emergency operation
2 2-Pack
- Not available with EB option

Downloads

TitleDate ModifiedDownload
C-Lite C-TR-C-FP14-S35L-SCCT Series LED Selectable Flat Panel 1′ x 4′ Spec Sheet08/01/2022Download File
C-Lite C-TR-C-FP22-S37L-SCCT Series LED Selectable Flat Panel 2′ x 2′ Spec Sheet08/01/2022Download File
C-Lite C-TR-C-FP24-S58L-SCCT Series LED Selectable Flat Panel 2×4 Spec Sheet08/01/2022Download File
C-Lite C-TR-D-FP14-SCCT 1×4 LED Flat Panel Spec Sheet03/01/2023Download File
C-Lite C-TR-D-FP22-SCCT 2×2 LED Flat Panel Spec Sheet03/01/2023Download File
C-Lite C-TR-D-FP24-SCCT 2×4 LED Flat Panel Spec Sheet03/01/2023Download File

Accessories & Options

Product ImageOrder #DescriptionSpec SheetInstall Guide
DGA14-WHT
DGA14-WHT

(Single-pack) For use when mounting in drywall ceilings.

Download FileDownload File
DGA14-WHT
DGA14-WHT-10PK

(10-pack) For use when mounting in drywall ceilings

Download FileDownload File
DGA22-WHT
DGA22-WHT

(Single-pack) For use when mounting in drywall ceilings.

Download FileDownload File
DGA22-WHT
DGA22-WHT-10PK

(10-pack) For use when mounting in drywall ceilings.

Download FileDownload File
DGA24-WHT
DGA24-WHT

(Single-pack) For use when mounting in drywall ceilings.

Download FileDownload File
DGA24-WHT
DGA24-WHT-10PK

(10-pack) For use when mounting in drywall ceilings.

Download FileDownload File
C-ACC-PSMK-1x4
C-ACC-PSMK14

1×4 Surface Mount Kit

Download File
C-ACC-PSMK-2x2
C-ACC-PSMK22

2×2 Surface Mount Kit

Download File
C-ACC-PSMK-2x4
C-ACC-PSMK24

2×4 Surface Mount Kit

Download File
C-ACC-D-FPAC

Suspension Kit

Download File
C-ACC-D-PSMK14

1×4 Surface Mount Kit

Download File
C-ACC-D-PSMK22

2×2 Surface Mount Kit

Download File
C-ACC-D-PSMK24

2×4 Surface Mount Kit

Download File
