OSQ Series

The OSQP™ LED Pathway/Bollard with NanoComfort® Technology provides precise illumination, design flexibility with rotatable optics, and a family aesthetic. The durable aluminum housing mounts seamlessly to a 4″ diameter pole (included) for a clean appearance, making it a suitable upgrade for 50-100W PSMH bollards.

10-year-warranty
10 Year Warranty
design-flexibility
Design Flexibility
designed-for-comfort
Designed for Comfort
DLC Premium
DLC Premium
energy-efficient
Energy Efficient
family-aesthetics
Family Aesthetics
Spec Sheets
Design Files
Installation Guides
OSQP Bollard Bronze
OSQP Bollard Bronze

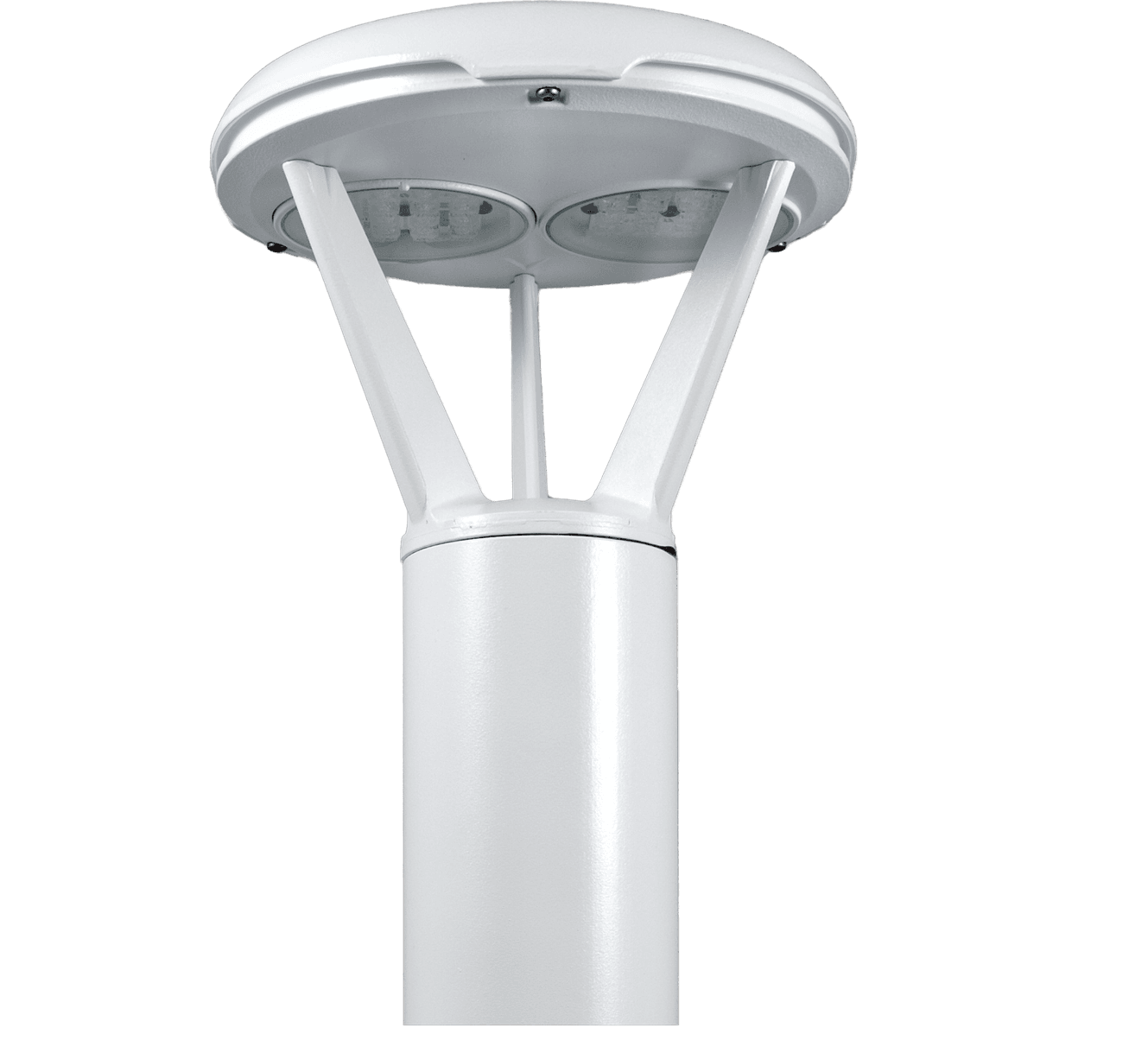

OSQP Bollard White
Overview
Talk to An Expert

Product Details


Light Output: 1,440 – 2,830 lumens
Wattage: 11 – 22 watts
Replaces: Up to 100W PSMH
Efficacy: Up to 142 LPW
Limited Warranty: 10-Year
Assembled in the USA by Cree Lighting of U.S. and imported parts
CRI Options: 70 CRI
CCT Options: 2700K, 3000K, 4000K, 5000K, 5700K
Finish Colors: Black, Bronze, Silver, White
IP66 rated enclosure
Durable Colorfast DeltaGuard® finish
0-10V dimming, High/Low Option, Occupancy Sensor, Button Photocell
Patented NanoComfort(R) Technology for visual comfort and better control
DLC Premium Qualified
DarkSky Approved

FamilySeriesLumen PackageCCT/CRIOpticVoltageMountingColor OptionsControlsOptions
OSQP
C
2L 2,000 lumens
3L 3,000 lumens
27K7 2700K, 70 CRI
30K7 3000K, 70 CRI
40K7 4000K, 70 CRI
50K7 5000K, 70 CRI
57K7 5700K, 70 CRI
2R Type II Mid Rotatable
3R Type III Mid Rotatable
5M Type V Mid
UL Universal 120-277V
12 120V
- Available only when OCC1 or OCC2 controls or GFI option is selected
27 277V
- Available only when OCC1 or OCC2 controls are selected
34 347V
48 480V
HD Head only (no pole)
- For use only with Cree Lighting bollard poles
P3 36.5" (927mm) pathway
P4 42.5" (1080mm) pathway
P8 96.5" (2451mm) pathway
BK Black
BZ Bronze
SV Silver
WH White
HL High/Low (Dual Circuit Input)
- Sensor not included
- Provides 40% or 60% low dimming
- Available with UL, 34 (347V) or 48 (480V) voltages
- Not available with other controls
- Refer to HL spec sheet for details
OCC1 Microwave Sensor (40% Dim/Full Power)
- Utilizes a multifunction sensor
- Available only with 12 (120V) or 27 (277V) voltages
- Not available with other controls
- Refer to OCC/TL spec sheet for details
OCC2 Microwave Sensor (Off/Full Power)
- Utilizes a multifunction sensor
- Available only with 12 (120V) or 27 (277V) voltages
- Not available with other controls
- Refer to OCC/TL spec sheet for details
P Button Photocell
- Not available with other controls
- Not available with HD mount
EB Emergency Battery Back-Up
- Provides 90 minutes and 7W of power in emergency mode
- Available only with UL, 34 and 48 voltages
- Not available with HL, OCC1, OCC2, or P controls
F Fuse
- Compatible only with 120V or 277V (phase to neutral)
- Consult factory if fusing is required for 208V or 240V (phase to phase)
- When code dictates fusing, use time delay fuse
- Not available with EB option
GFI Standard GFI Festoon
- Located 7.7" (195mm) above the base of the pole
- Available only with 12 (120V) voltage
- Not available with HD mount
- Requires OSQP-GFI GFI Receptacle Outlet accessory
WB Welded Base Plate
- Not available with HD mount
- Available for P3 and P4 mount
- WB suffix not required for P8 mount, ships standard
- Includes welded base cover

Downloads

TitleDownload
OSQP LED Pathway Bollard Spec SheetDownload File

Accessories & Options

Product ImageOrder #DescriptionSpec SheetInstall Guide
OSQP-GFI

GFI Receptacle Outlet

XA-XBP8RBK
XA-XBP8RBK

Upgrade Kit (Field-Installed)

Download File
XA-XBP8RBZ
XA-XBP8RBZ

Upgrade Kit (Field-Installed)

Download File
XA-XBP8RSV
XA-XBP8RSV

Upgrade Kit (Field-Installed)

Download File
XA-XBP8RSV
XA-XBP8RWH

Upgrade Kit (Field-Installed)
Shown with silver finish

Download File
OSQP-C-EBKIT

EB Replacement Kit for OSQP-C Luminaires

Download File
OSQP-C-DVRKT-2L

Driver Replacement Kit for OSQP-C Luminaires

Download File
OSQP-C-DVRKT-3L

Driver Replacement Kit for OSQP-C Luminaires

Download File
OSQP-C-DVRKT-2L-HL-L

Driver Replacement Kit for OSQP-C Luminaires

Download File
OSQP-C-DVRKT-3L-HL-L

Driver Replacement Kit for OSQP-C Luminaires

Download File
OSQP-C-DVRKT-2L-HL-H

Driver Replacement Kit for OSQP-C Luminaires

Download File
OSQP-C-DVRKT-3L-HL-H

Driver Replacement Kit for OSQP-C Luminaires

Download File
OSQP-C-TRFKT-34

Transformer Replacement Kit for OSQP – 347V

Download File
OSQP-C-TRFKT-48

Transformer Replacement Kit for OSQP – 480V

Download File
