FLEX Series Square Lens

With multiple lumen options and a selection of customized inner optics, the FLEX Series troffer offers remarkable design freedom. Five inner optic choices creative distinctive spaces with just one fixture to specify. With Tunable White and higher lumen packages for over 20′, the FLEX Series is open to a variety of applications.

design-flexibility
Design Flexibility
DLC Premium
DLC Premium
great-dimming
Great Dimming
high-lumen-options
High Lumen Options
intelligent controls
Intelligent Options
tunable-white
Tunable White
Spec Sheets
Design Files
Installation Guides

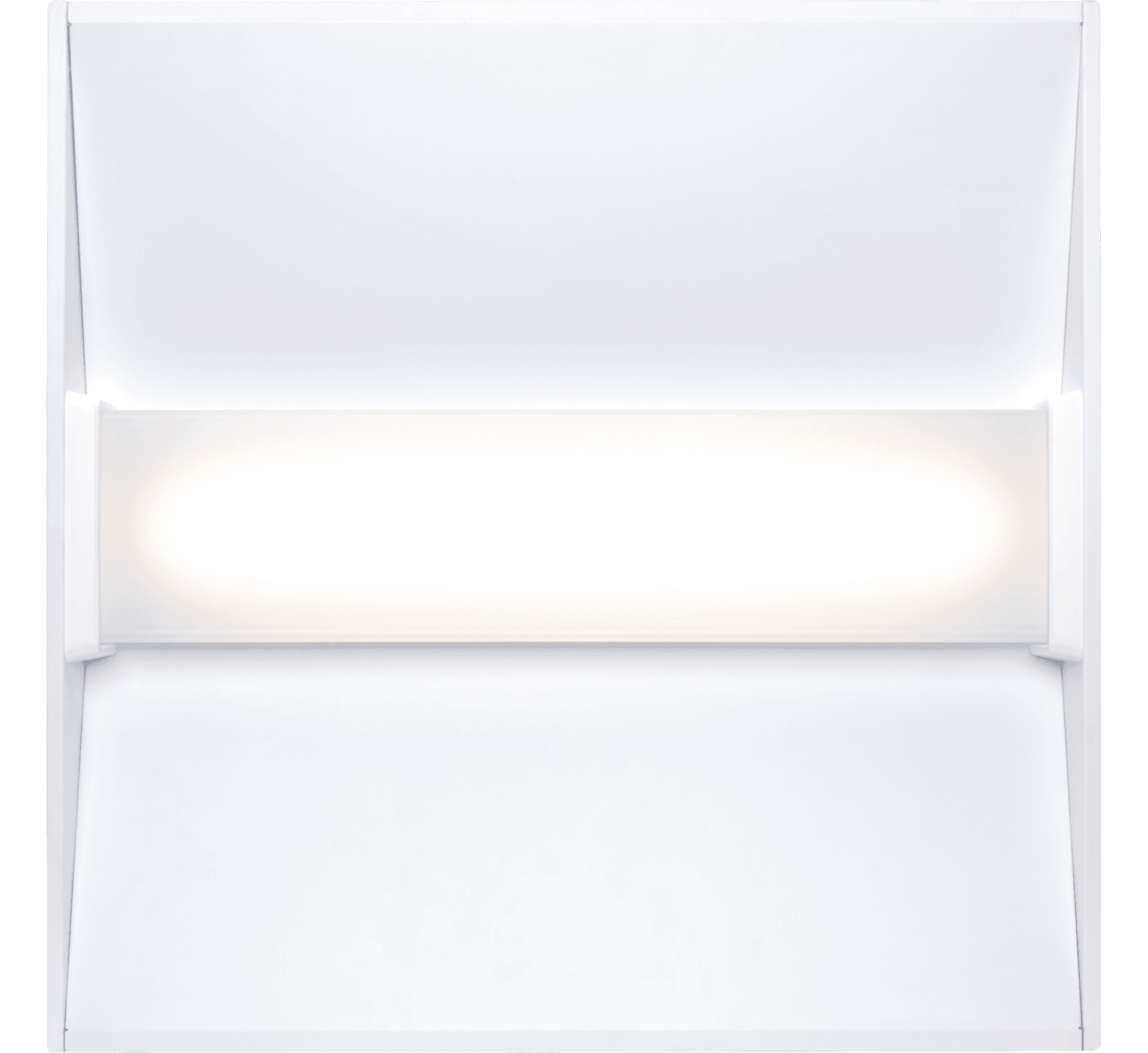

Flex Troffer Square Lens
Flex Troffer Square Lens
Flex Troffer Square Lens
Flex Troffer Square Lens
Overview
Talk to An Expert

Product Details


Light Output: 2,600 – 10,000 Lumens
Wattage: 18 – 82 Watts
Replaces: Linear fluorescent
Efficacy: Up to 159 LPW
Limited Warranty: 10-year
CRI Options: 80+ and 90+ CRI
CCT Options: 3000K, 3500K, 4000K, 5000K
Tunable White (SmartCast, Lutron Athena and Lutron T-Series)
Five inner optic options
Mounting heights over 20′
0-10V dimming to 1%
SmartCast Wireless, DALI
Lutron Athena, T-Series, Vive and EcoSystem
Assembled in USA by Cree Lighting of US and imported parts
DLC Standard and DLC Premium

FamilySizeLumen PackageCCTLensControlsVoltageFactory-Installed Options
FLX
14
1x4
30L3,000 Lumens
40L4,000 Lumens
50L5,000 Lumens
60L6,000 Lumens
830
80 CRI, 3000K
835
80 CRI, 3500K
840
80 CRI, 4000K
850
80 CRI, 5000K
930
90 CRI, 3000K
935
90 CRI, 3500K
940
90 CRI, 4000K
950
90 CRI, 5000K
9ACK
90 CRI, Adjustable Color 3000K-6500K in 100K increments
- Available only with 30L-60L lumen packages (SC1 or AWNR controls) or 40L-60L lumen packages (PSQ0 control)
- Available only with SC1, PSQ0, or AWNR controls
SQ Square
10V10
0-10V 10% Dimming
- Available only with 30L - 60L lumen packages
10V1
0-10V 1% dimming
SC1
SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors
- For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (30L-60L lumen packages only)
VDO
Lutron Vive Wireless Integral Fixture Control with Occupancy and Daylight Sensing
VRF
Lutron Vive Wireless Integral Fixture Control (RF only)
LDE1
Lutron HiLume 1% EcoSystem LED Driver with Soft-on, Fade to Black dimming technology
PSQ0
Lutron T-Series 2 Channel Tunable White
- Requires 9ACK CRI/CCT option
- Available only with 40L - 60L lumen package
DALI
DALI dimming to 1%
AWNR Lutron Athena Integral Fixture Control (RF only) - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only)
- Utilizes a DALI2 drive
UNVUniversal 120-277V
34 347V (not available with 10V10 controls)
6PW5W Power Whip
- 6' 5 Wire
- Available with UNV voltage only
6PW6W Power Whip
- 6' 6 Wire for use with luminaires w/EB option
- Available with UNV voltage only
CP Chicago Plenum
- Available with UNV voltage only
- Not available with EB
EB Emergency Backup
- Available with UNV voltage only
- Provides 10W and 90 minutes of emergency operation
- GTD and EB cannot be used together
GTD Generator Transfer Device
- Available with UNV voltage only
- GTD and EB cannot be used together
- Not available with power whip options
FLX
222x2
26L 2,600 Lumens
30L3,000 Lumens
40L4,000 Lumens
50L5,000 Lumens
830
80 CRI, 3000K
835
80 CRI, 3500K
840
80 CRI, 4000K
850
80 CRI, 5000K
930
90 CRI, 3000K
935
90 CRI, 3500K
940
90 CRI, 4000K
950
90 CRI, 5000K
9ACK
90 CRI, Adjustable Color 3000K-6500K in 100K increments
- Available only with 26L-50L lumen packages (SC1 or AWNR controls) or 40L-50L lumen packages (PSQ0 control)
- Available only with SC1, PSQ0, or AWNR controls
SQSquare
10V10
0-10V 10% Dimming
- Available only with 26L - 50L lumen packages
10V1
0-10V 1% dimming
SC1
SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors
- For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (26L-50L lumen packages only)
VDO
Lutron Vive Wireless Integral Fixture Control with Occupancy and Daylight Sensing
VRF
Lutron Vive Wireless Integral Fixture Control (RF only)
LDE1
Lutron HiLume 1% EcoSystem LED Driver with Soft-on, Fade to Black dimming technology
PSQ0
Lutron T-Series 2 Channel Tunable White
- Requires 9ACK CRI/CCT option
- Available only with 40L - 50L lumen packages
DALI
DALI dimming to 1%
AWNR Lutron Athena Integral Fixture Control (RF only) - Tunable white requires 9ACK CRI/CCT (26L-50L lumen packages only)
- Utilizes a DALI2 drive
UNVUniversal 120-277V
34 347V (not available with 10V10 controls)
6PW5W Power Whip
- 6' 5 Wire
- Available with UNV voltage only
6PW6W Power Whip
- 6' 6 Wire for use with luminaires w/EB option
- Available with UNV voltage only
CP Chicago Plenum
- Available with UNV voltage only
- Not available with EB
EB Emergency Backup
- Available with UNV voltage only
- Provides 10W and 90 minutes of emergency operation
- GTD and EB cannot be used together
GTD Generator Transfer Device
- Available with UNV voltage only
- GTD and EB cannot be used together
- Not available with power whip options
FLX
242x4
30L3,000 Lumens
40L4,000 Lumens
50L5,000 Lumens
60L6,000 Lumens
70L7,000 Lumens
80L8,000 Lumens
100L10,000 Lumens
830
80 CRI, 3000K
835
80 CRI, 3500K
840
80 CRI, 4000K
850
80 CRI, 5000K
930
90 CRI, 3000K
935
90 CRI, 3500K
940
90 CRI, 4000K
950
90 CRI, 5000K
9ACK
90 CRI, Adjustable Color 3000K-6500K in 100K increments
- Available only with 30L-60L lumen packages (SC1 or AWNR controls) or 40L-60L lumen packages (PSQ0 control)
- Available only with SC1, PSQ0, or AWNR controls
SQSquare
10V10
0-10V 10% Dimming
- Available only with 30L - 60L lumen packages
10V1
0-10V 1% dimming
SC1
SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors
- For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (30L-60L lumen packages only)
VDO
Lutron Vive Wireless Integral Fixture Control with Occupancy and Daylight Sensing
VRF
Lutron Vive Wireless Integral Fixture Control (RF only)
LDE1
Lutron HiLume 1% EcoSystem LED Driver with Soft-on, Fade to Black dimming technology
PSQ0
Lutron T-Series 2 Channel Tunable White
- Requires 9ACK CRI/CCT option
- Available only with 40L - 60L lumen package
DALI
DALI dimming to 1%
AWNR Lutron Athena Integral Fixture Control (RF only) - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only)
- Utilizes a DALI2 drive
UNVUniversal 120-277V
34 347V (not available with 10V10 controls)
6PW5W Power Whip
- 6' 5 Wire
- Available with UNV voltage only
6PW6W Power Whip
- 6' 6 Wire for use with luminaires w/EB option
- Available with UNV voltage only
CP Chicago Plenum
- Available with UNV voltage only
- Not available with EB
EB Emergency Backup
- Available with UNV voltage only
- Provides 10W and 90 minutes of emergency operation
- GTD and EB cannot be used together
GTD Generator Transfer Device
- Available with UNV voltage only
- GTD and EB cannot be used together
- Not available with power whip options
FLX
14
1x4
30L3,000 Lumens
40L4,000 Lumens
50L5,000 Lumens
60L6,000 Lumens
830
80 CRI, 3000K
835
80 CRI, 3500K
840
80 CRI, 4000K
850
80 CRI, 5000K
930
90 CRI, 3000K
935
90 CRI, 3500K
940
90 CRI, 4000K
950
90 CRI, 5000K
9ACK
90 CRI, Adjustable Color 3000K-6500K in 100K increments
- Available only with 30L-60L lumen packages (SC1 or AWNR controls) or 40L-60L lumen packages (PSQ0 control)
- Available only with SC1, PSQ0, or AWNR controls
CR ZR Curve
ARC FLX Arc
SQ Square
10V10
0-10V 10% Dimming
- Available only with 30L - 60L lumen packages
10V1
0-10V 1% dimming
SC1
SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors
- For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (30L-60L lumen packages only)
VDO
Lutron Vive Wireless Integral Fixture Control with Occupancy and Daylight Sensing
VRF
Lutron Vive Wireless Integral Fixture Control (RF only)
LDE1
Lutron HiLume 1% EcoSystem LED Driver with Soft-on, Fade to Black dimming technology
PSQ0
Lutron T-Series 2 Channel Tunable White
- Requires 9ACK CRI/CCT option
- Available only with 40L - 60L lumen package
DALI
DALI dimming to 1%
AWNR Lutron Athena Integral Fixture Control (RF only) - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only)
- Utilizes a DALI2 drive
UNVUniversal 120-277V
34 347V (not available with 10V10 controls)
6PW5W Power Whip
- 6' 5 Wire
- Available with UNV voltage only
6PW6W Power Whip
- 6' 6 Wire for use with luminaires w/EB option
- Available with UNV voltage only
CP Chicago Plenum
- Available with UNV voltage only
- Not available with EB
EB Emergency Backup
- Available with UNV voltage only
- Provides 10W and 90 minutes of emergency operation
- GTD and EB cannot be used together
GTD Generator Transfer Device
- Available with UNV voltage only
- GTD and EB cannot be used together
- Not available with power whip options
FLX
222x2
26L 2,600 Lumens
30L3,000 Lumens
40L4,000 Lumens
50L5,000 Lumens
830
80 CRI, 3000K
835
80 CRI, 3500K
840
80 CRI, 4000K
850
80 CRI, 5000K
930
90 CRI, 3000K
935
90 CRI, 3500K
940
90 CRI, 4000K
950
90 CRI, 5000K
9ACK
90 CRI, Adjustable Color 3000K-6500K in 100K increments
- Available only with 26L-50L lumen packages (SC1 or AWNR controls) or 40L-50L lumen packages (PSQ0 control)
- Available only with SC1, PSQ0, or AWNR controls
CR ZR Curve
ARC FLX Arc
SQ Square
10V10
0-10V 10% Dimming
- Available only with 26L - 50L lumen packages
10V1
0-10V 1% dimming
SC1
SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors
- For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (26L-50L lumen packages only)
VDO
Lutron Vive Wireless Integral Fixture Control with Occupancy and Daylight Sensing
VRF
Lutron Vive Wireless Integral Fixture Control (RF only)
LDE1
Lutron HiLume 1% EcoSystem LED Driver with Soft-on, Fade to Black dimming technology
PSQ0
Lutron T-Series 2 Channel Tunable White
- Requires 9ACK CRI/CCT option
- Available only with 40L - 50L lumen packages
DALI
DALI dimming to 1%
AWNR Lutron Athena Integral Fixture Control (RF only) - Tunable white requires 9ACK CRI/CCT (26L-50L lumen packages only)
- Utilizes a DALI2 drive
UNVUniversal 120-277V
34 347V (not available with 10V10 controls)
6PW5W Power Whip
- 6' 5 Wire
- Available with UNV voltage only
6PW6W Power Whip
- 6' 6 Wire for use with luminaires w/EB option
- Available with UNV voltage only
CP Chicago Plenum
- Available with UNV voltage only
- Not available with EB
EB Emergency Backup
- Available with UNV voltage only
- Provides 10W and 90 minutes of emergency operation
- GTD and EB cannot be used together
GTD Generator Transfer Device
- Available with UNV voltage only
- GTD and EB cannot be used together
- Not available with power whip options
FLX
242x4
30L3,000 Lumens
40L4,000 Lumens
50L5,000 Lumens
60L6,000 Lumens
70L7,000 Lumens
80L8,000 Lumens
100L10,000 Lumens
830
80 CRI, 3000K
835
80 CRI, 3500K
840
80 CRI, 4000K
850
80 CRI, 5000K
930
90 CRI, 3000K
935
90 CRI, 3500K
940
90 CRI, 4000K
950
90 CRI, 5000K
9ACK
90 CRI, Adjustable Color 3000K-6500K in 100K increments
- Available only with 30L-60L lumen packages (SC1 or AWNR controls) or 40L-60L lumen packages (PSQ0 control)
- Available only with SC1, PSQ0, or AWNR controls
CR ZR Curve
ARC FLX Arc
SQ Square
10V10
0-10V 10% Dimming
- Available only with 30L - 60L lumen packages
10V1
0-10V 1% dimming
SC1
SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors
- For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (30L-60L lumen packages only)
VDO
Lutron Vive Wireless Integral Fixture Control with Occupancy and Daylight Sensing
VRF
Lutron Vive Wireless Integral Fixture Control (RF only)
LDE1
Lutron HiLume 1% EcoSystem LED Driver with Soft-on, Fade to Black dimming technology
PSQ0
Lutron T-Series 2 Channel Tunable White
- Requires 9ACK CRI/CCT option
- Available only with 40L - 60L lumen package
DALI
DALI dimming to 1%
AWNR Lutron Athena Integral Fixture Control (RF only) - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only)
- Utilizes a DALI2 drive
UNVUniversal 120-277V
34 347V (not available with 10V10 controls)
6PW5W Power Whip
- 6' 5 Wire
- Available with UNV voltage only
6PW6W Power Whip
- 6' 6 Wire for use with luminaires w/EB option
- Available with UNV voltage only
CP Chicago Plenum
- Available with UNV voltage only
- Not available with EB
EB Emergency Backup
- Available with UNV voltage only
- Provides 10W and 90 minutes of emergency operation
- GTD and EB cannot be used together
GTD Generator Transfer Device
- Available with UNV voltage only
- GTD and EB cannot be used together
- Not available with power whip options

Downloads

TitleDownload
FLX Gen II Series Troffer Spec SheetDownload File

Accessories & Options

Product ImageOrder #DescriptionSpec SheetInstall Guide
Smartcast Configuration Tool
CCT-CWC-1

SmartCast Wireless Configuration Tool

Download FileDownload File
Smartcast Touchscreen Controller
CSC-TS-A-BK

SmartCast Wireless Touchscreen Control

Download FileView All Downloads
Smartcast 10V Zone Controller
CSC-ZC-10V-CWC

SmartCast 10V Zone Controller

Download FileDownload File
CSC-WPS-120V
CSC-WPS-120V

SmartCast Wireless Wall Plug Power Supply

Download FileView All Downloads
SMK-ZR14
SMK-FLX14

1×4 Surface Mount Kit

Download FileDownload File
SMK-ZR22
SMK-FLX22

2×2 Surface Mount Kit

Download FileDownload File
SMK-ZR24
SMK-FLX24

2×4 Surface Mount Kit

Download FileDownload File
DGA14-WHT
DGA14-WHT

(Single-pack) For use when mounting in drywall ceilings.
