OSQ® Transportation Mount

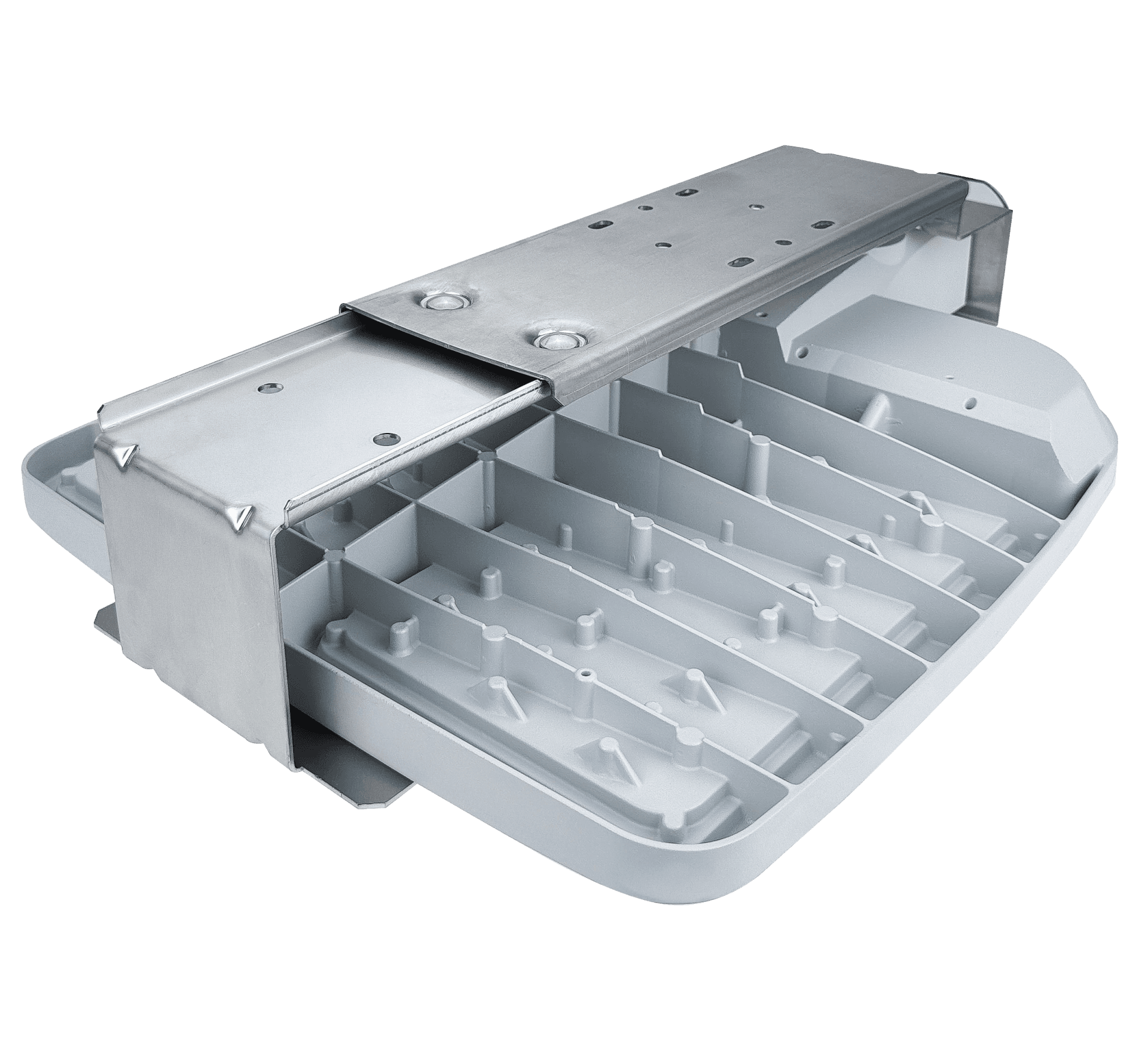

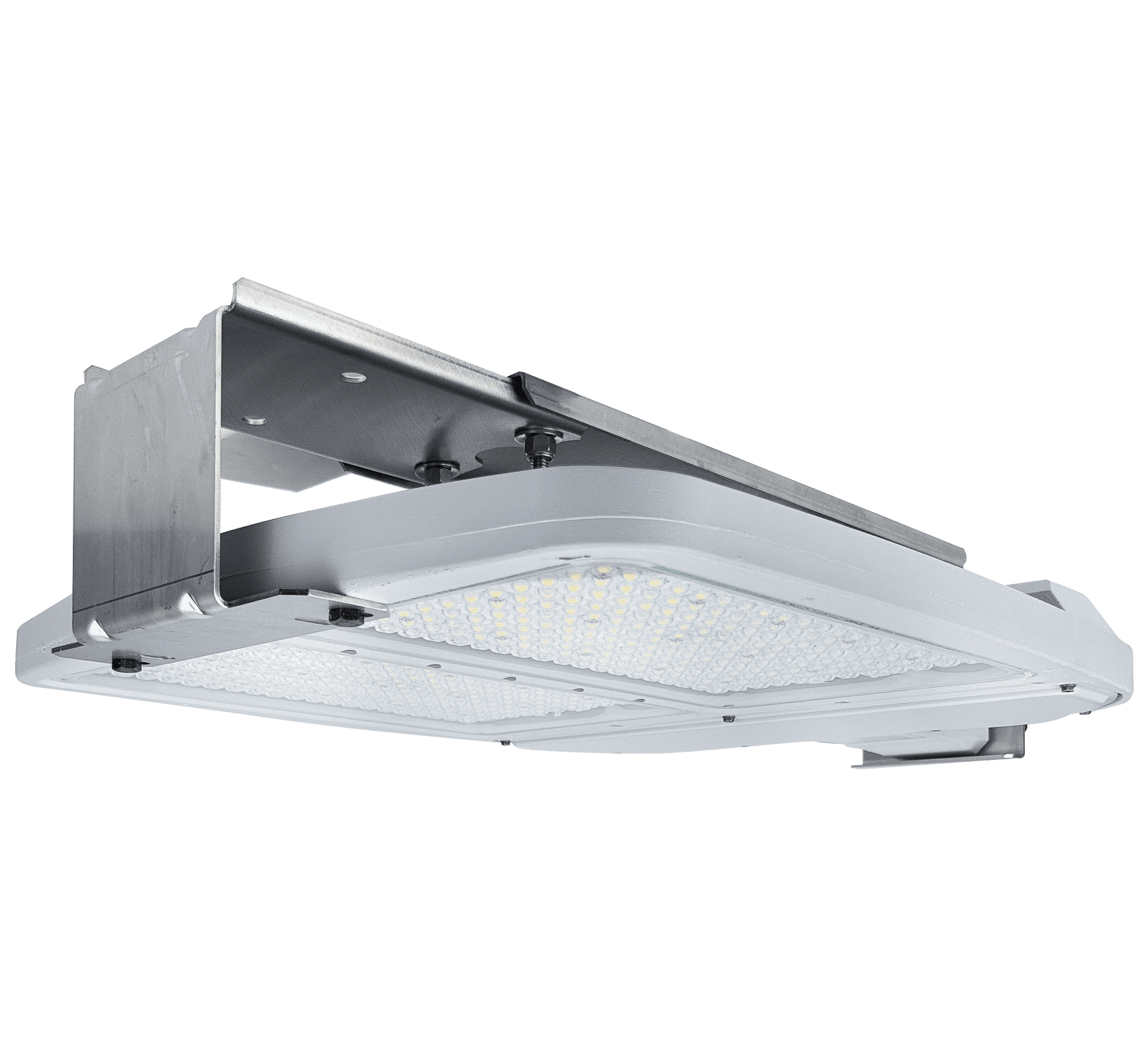

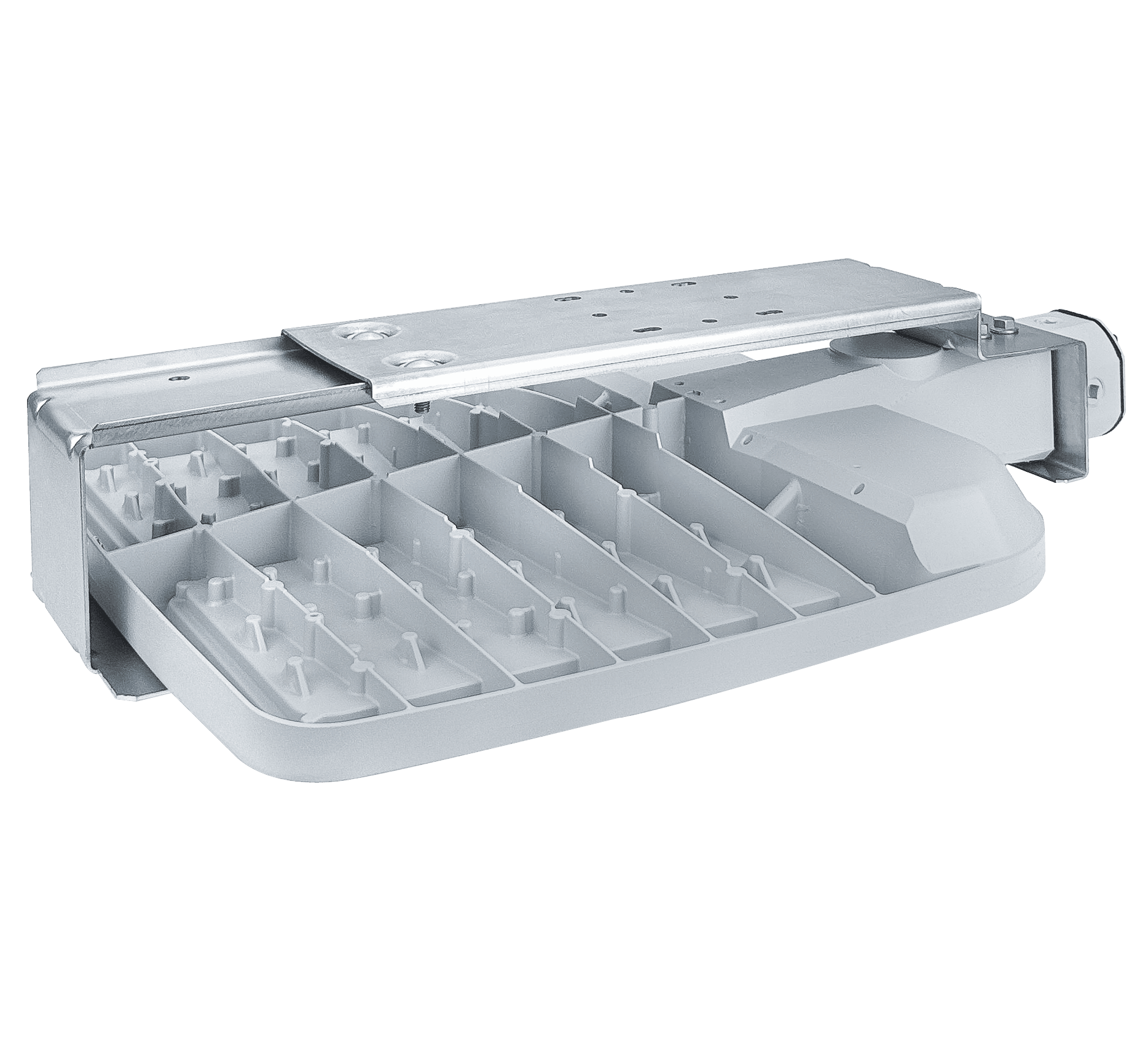

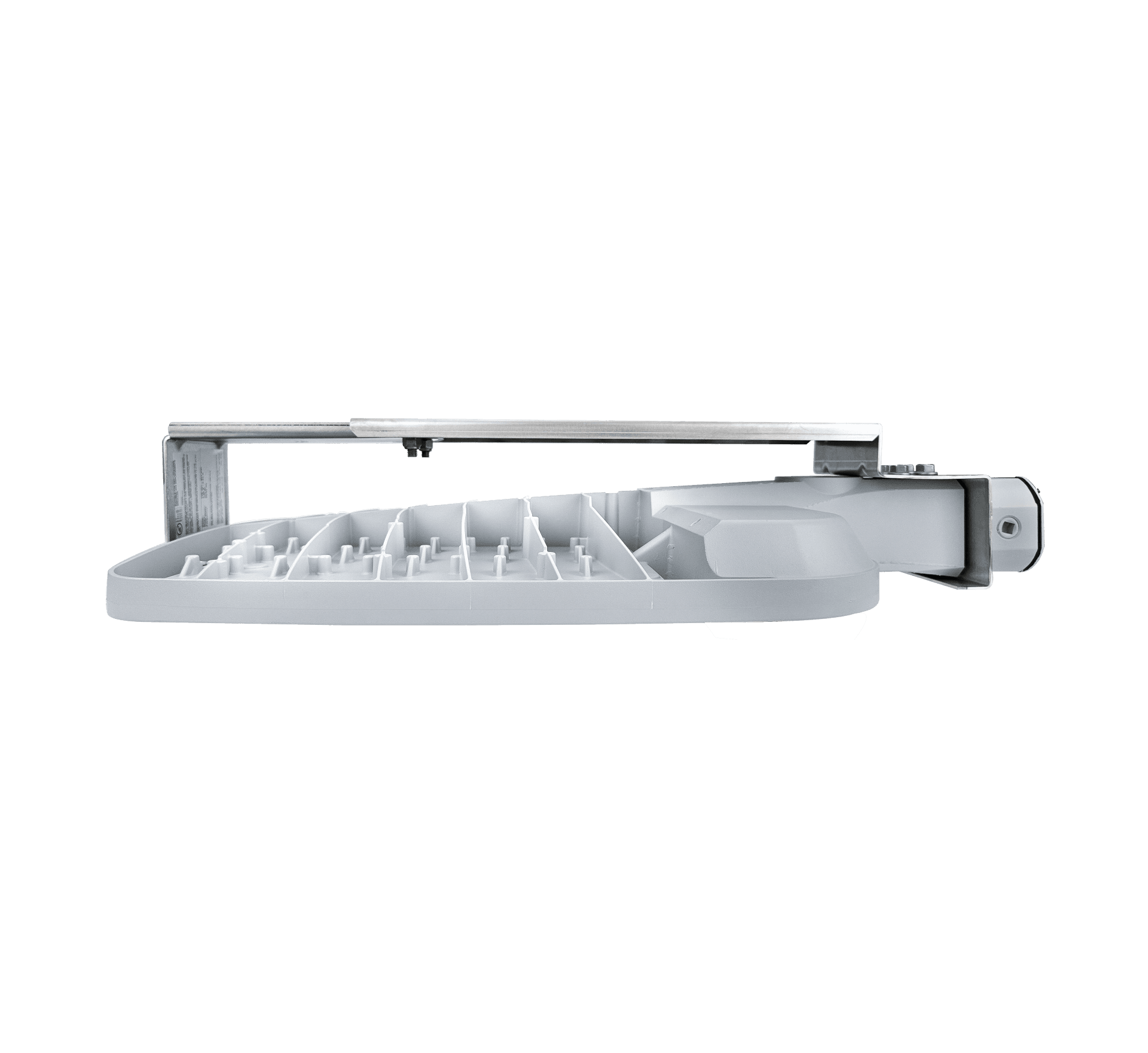

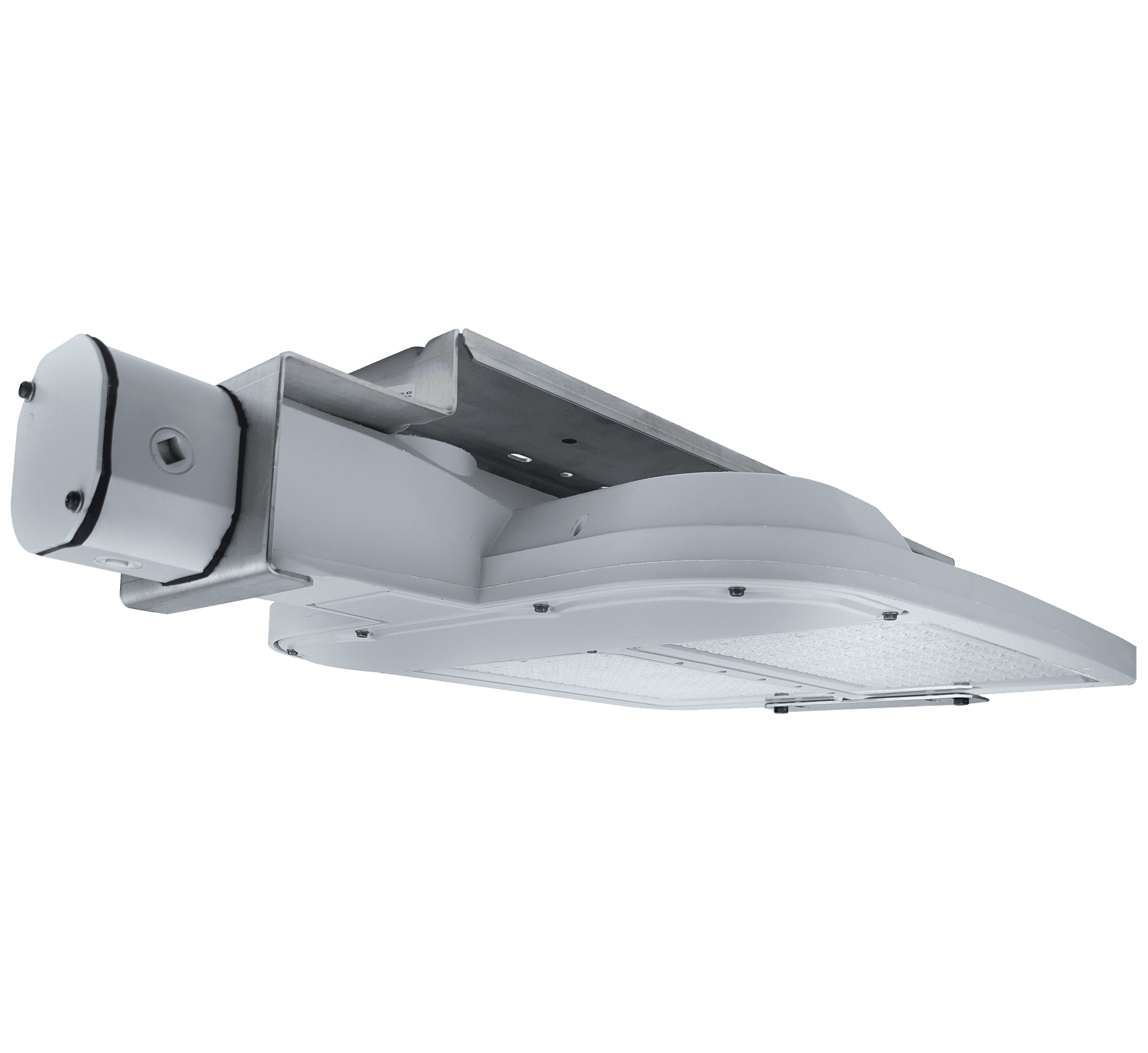

The OSQ® transportation mount luminaire blends extreme optical control, advanced thermal management and modern, clean aesthetics. Built to last, the housing is rugged cast aluminum with an integral, weathertight LED driver compartment. Its slim, low-profile mounting bracket comes installed from the factory and blends seamlessly into the site providing even, quality illumination.
10 Year Warranty
DarkSky Approved
DLC Premium
High CRI Options
High Efficacy Options
Low Profile Design
Product Details
Light Output: 960 – 40,000 Lumens
Wattage: 13 – 236 Watts
Replaces: Up to multiple 1000W HID
Efficacy: Up to 171 LPW
Limited Warranty: 10-year
Wattage: 13 – 236 Watts
Replaces: Up to multiple 1000W HID
Efficacy: Up to 171 LPW
Limited Warranty: 10-year
CRI Options: 50, 70, and 90 CRI
CCT Options: 1900K, 3000K, 4000K, 5000K, 5700K
Finish Colors: Black, Bronze, Silver, White
Patented NanoComfort® Technology for visual comfort and better control
QR code-enabled field serviceability
DALI® Dimming control available
CCT Options: 1900K, 3000K, 4000K, 5000K, 5700K
Finish Colors: Black, Bronze, Silver, White
Patented NanoComfort® Technology for visual comfort and better control
QR code-enabled field serviceability
DALI® Dimming control available
DarkSky Approved
Assembled in the USA by Cree Lighting of US and imported parts
Durable Colorfast DeltaGuard® finish
DLC & DLC Premium Qualified
Assembled in the USA by Cree Lighting of US and imported parts
Durable Colorfast DeltaGuard® finish
DLC & DLC Premium Qualified
- Ordering Matrix
- Certifications
| Family | Size | Series | Lumen Package | CCT/CRI | Optic | Voltage | Mounting | Controls | Options |
|---|---|---|---|---|---|---|---|---|---|
| OSQ | M Medium | C | 4L4,000 lumens 6L6,000 lumens 9L9,000 lumens 11L11,000 lumens 16L16,000 lumens | 19K5 1900K, 50 CRI - Available only with 16L lumen package 30K7 3000K, 70 CRI 40K7 4000K, 70 CRI 50K9 5000K, 90 CRI 57K7 5700K, 70 CRI | ASYMMETRIC: 2M Type II Mid 3M Type III Mid 4M Type IV Mid SYMMETRIC: 5L Type V Long 5M Type V Mid 5N Type V Narrow 33NEMA® 3x3 44 NEMA® 4x4 55 NEMA® 5x5 66 NEMA® 6x6 75 NEMA® 7x5 | UL Universal 120-277V UH Universal 347-480V - Not available with 4L lumen package UE Universal 277-480V - Available only with 16L lumen package when ordered with DLI controls | TSP Transportation Mount - Mount is factory-installed | DLI DALI® Compatible - Utilizes DALI 2® and D4i® driver that dims to 10% - Available only with 6L – 16L lumen packages (UL) and 16L lumen package (UE) - Not available with other controls Q9/Q8/Q7/Q6/Q5/Q4/Q3/Q2/Q1 Field Adjustable Output - Must select Q9, Q8, Q7, Q6, Q5, Q4, Q3, Q2, or Q1 - Offers full range adjustability - Refer to pages 10-17 of spec sheet for power and lumen values - Not available with other controls X8/X7/X6/X5/X4/X3/X2/X1 Locked Lumen Output - Must select X8, X7, X6, X5, X4, X3, X2, or X1 - Lumen output is permanently locked to the setting selected - Refer to pages 10-17 of spec sheet for power and lumen values - X1 option not available with the following lumen package/voltage offerings: 9L/UL, 16L/UL, 16L/UH - X2 option not available 9L/UL lumen package/voltage - Not available with other controls | 20KV 20kV/10kA Surge Suppression - Replaces standard 10kV/5kA surge protection F Fuse - Compatible with 120V, 277V or 347V (phase to neutral) - Consult factory if fusing is required for 208V, 240V or 480V (phase to phase) - When code dictates fusing, use time delay fuse RL Rotate Left - LED and optic are rotated to the left - Not for use with symmetric optics RR Rotate Right - LED and optic are rotated to the right - Not for use with symmetric optics |
| OSQ | L Large | C | 22L 22,000 lumens 30L 30,000 lumens 40L 40,000 lumens | 19K5 1900K, 50 CRI - Available only with 30L lumen package 30K7 3000K, 70 CRI 40K7 4000K, 70 CRI 50K9 5000K, 90 CRI 57K7 5700K, 70 CRI | ASYMMETRIC: 2M Type II Mid 3M Type III Mid 4M Type IV Mid SYMMETRIC: 5L Type V Long 5M Type V Mid 5N Type V Narrow 33NEMA® 3x3 44 NEMA® 4x4 55 NEMA® 5x5 66 NEMA® 6x6 75 NEMA® 7x5 | UL Universal 120-277V UH Universal 347-480V - Not available with 40L lumen package UE Universal 277-480V - Available only with 40L lumen package when ordered with 0-10V dimming, Q9 Field Adjustable or X8 Locked Lumen controls - Available only with 22L-40L lumen package when ordered with DLI controls | TSP Transportation Mount - Mount is facotry-installed | DLI DALI® Compatible - Utilizes DALI 2® and D4i® driver that dims to 10% - Available with UL and UE voltages - Not available with other controls Q9/Q8/Q7/Q6/Q5/Q4/Q3/Q2/Q1 Field Adjustable Output - Must select Q9, Q8, Q7, Q6, Q5, Q4, Q3, Q2, or Q1 - Offers full range adjustability - Refer to pages 10-17 of spec sheet for power and lumen values - Not available with other controls X8/X7/X6/X5/X4/X3/X2/X1 Locked Lumen Output - Must select X8, X7, X6, X5, X4, X3, X2, or X1 - Lumen output is permanently locked to the setting selected - Refer to pages 10-17 of spec sheet for power and lumen values - X1 option not available with the following lumen package/voltage offerings: 30L/UL, 30L/UH - Not available with other controls | 20KV 20kV/10kA Surge Suppression - Replaces standard 10kV/5kA surge protection F Fuse - Compatible with 120V, 277V or 347V (phase to neutral) - Consult factory if fusing is required for 208V, 240V or 480V (phase to phase) - When code dictates fusing, use time delay fuse RL Rotate Left - LED and optic are rotated to the left - Not for use with symmetric optics RR Rotate Right - LED and optic are rotated to the right - Not for use with symmetric optics |
Downloads
- Spec Sheets
- IES & Design Files
- Installation Guides
- Technical Documents
- Warranty
- Literature
Accessories & Options
| Product Image | Order # | Description | Spec Sheet | Install Guide |
|---|---|---|---|---|
 | OSQ-M-C-BLSF | External Backlight Shield (for use only with OSQM-C Luminaires) | Download File | |
| OSQ-L-C-BLSF | External Backlight Shield (for use only with OSQL-C Luminaires) | Download File |
