CPY250 Series
The CPY250® Series Canopy is the perfect balance of price and performance with increased efficiency and DLC Premium qualification. Expanded lumen packages and mounting options including a car wash bracket make this fixture perfect for an even larger range of petroleum and other covered canopy applications.
10 Year Warranty
Dark Sky Approved
DLC Premium
Energy Efficient
Low Profile Design
Wet Location
Product Details
Light Output: 1,730 – 21,300 lumens
Wattage: 14 -132 watts
Replaces: 400W HID
Efficacy: Up to 165 LPW
Limited Warranty: 10-year
Wattage: 14 -132 watts
Replaces: 400W HID
Efficacy: Up to 165 LPW
Limited Warranty: 10-year
CRI Options: 70, 80 and 90 CRI
CCT Options: 3000K, 4000K, 5000K, 5700K
NSF Certified
Class 1, Div 2 Hazardous location rated
DLC Standard
DLC Premium
CCT Options: 3000K, 4000K, 5000K, 5700K
NSF Certified
Class 1, Div 2 Hazardous location rated
DLC Standard
DLC Premium
IDA-Approved
0-10V dimming and PML options
Flat or drop lenses available
Direct, flush, car wash, hook & cord and pendant mounting
Assembled in the USA by Cree Lighting from US and imported parts
0-10V dimming and PML options

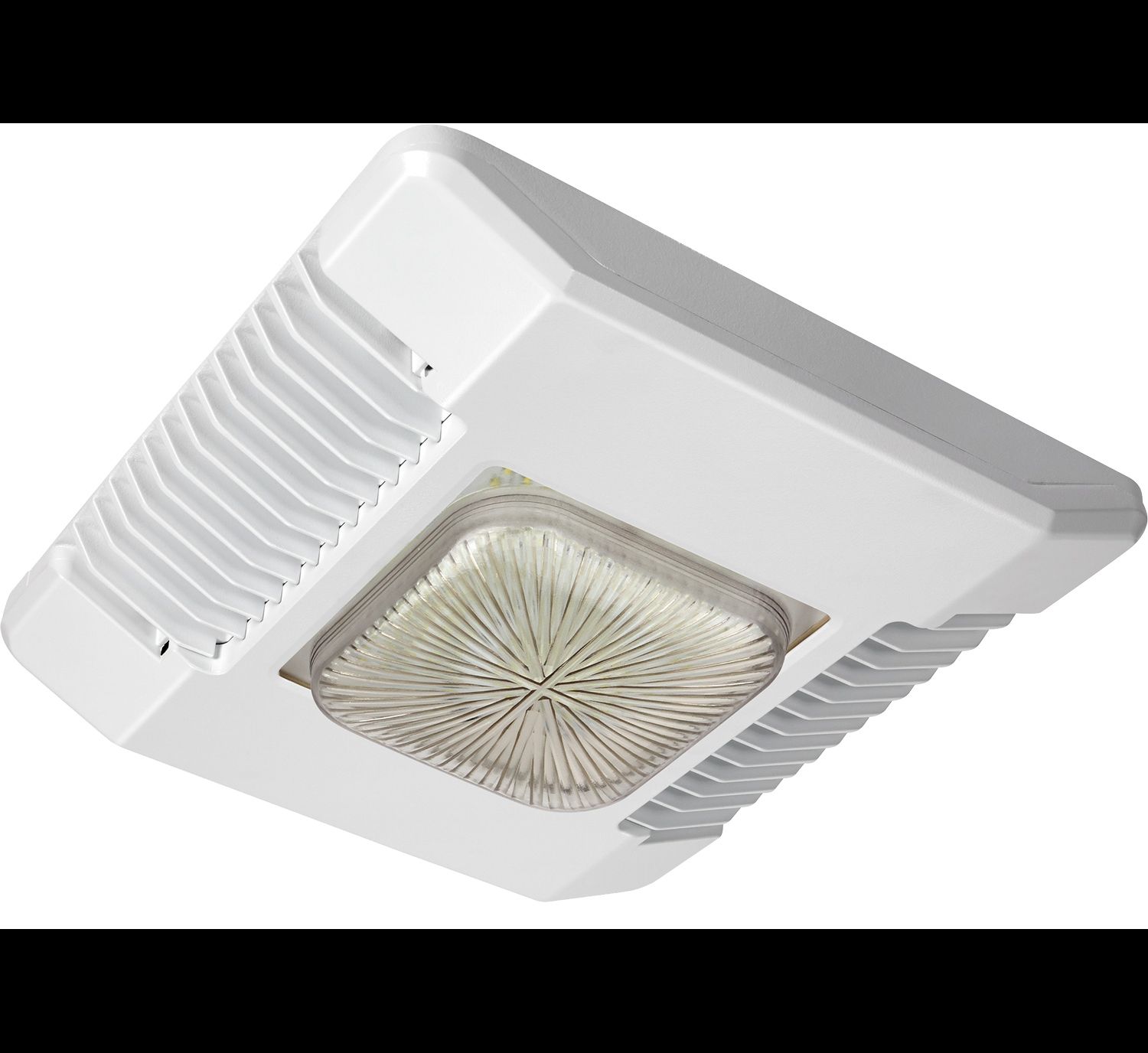

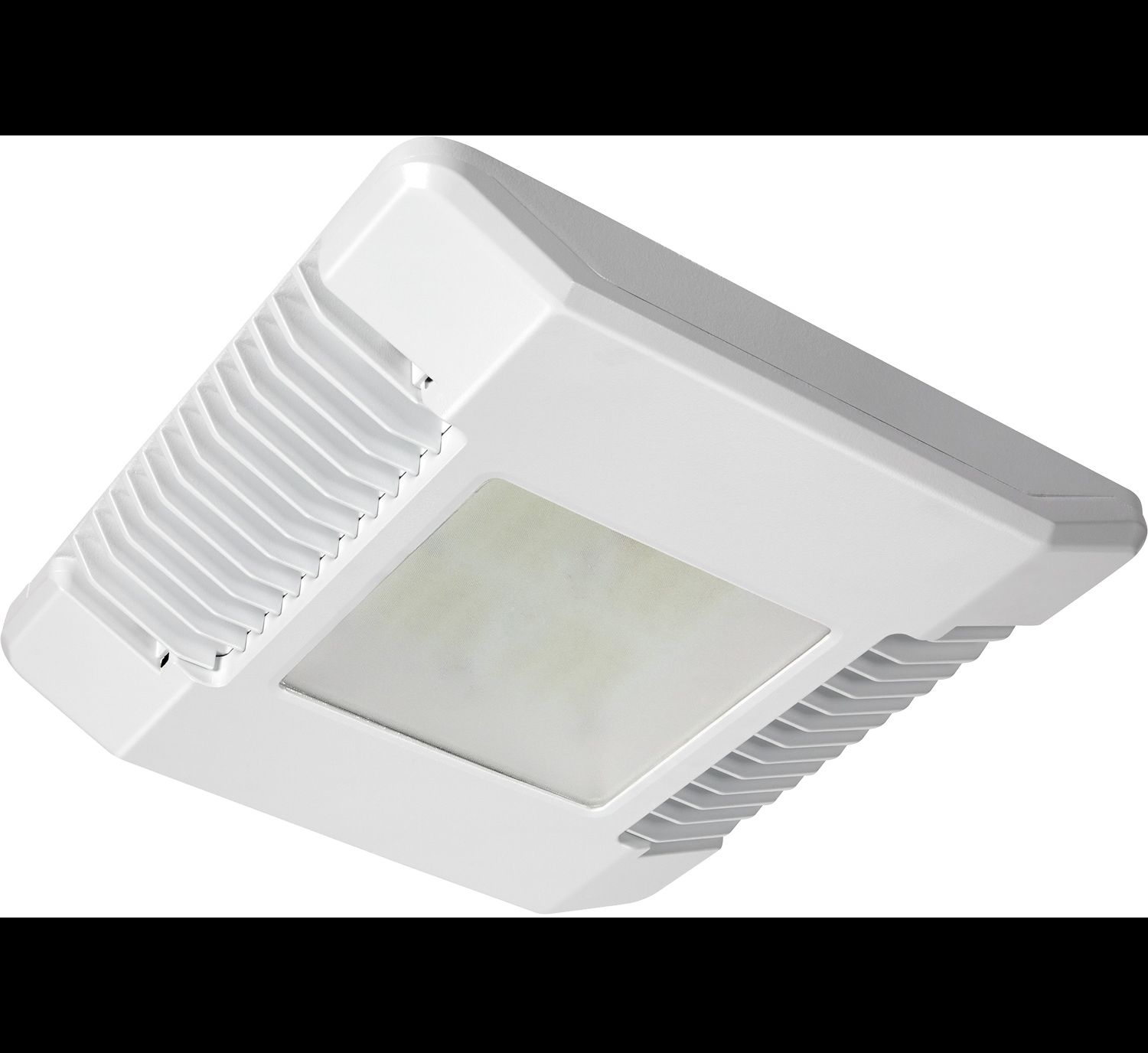

Flat or drop lenses available
Direct, flush, car wash, hook & cord and pendant mounting
Assembled in the USA by Cree Lighting from US and imported parts
- Ordering Matrix
- Certifications
| Name | Version | Lumen Package | CCT | Optic | Voltage | Mounting | Color Options | Controls | Options |
|---|---|---|---|---|---|---|---|---|---|
| CPY250 | C | 2L2,000 Lumens 4L4,000 Lumens 8L8,000 Lumens 13L13,000 Lumens 21L21,000 Lumens | 30K8 3000K, 80 CRI 40K7 4000K, 70 CRI 40K9 4000K, 90 CRI 50K7 5000K, 70 CRI 50K9 5000K, 90 CRI 57K7 5700K, 70 CRI | D0.91" (23mm) Drop Lens FFlat Lens | ULUniversal 120-277V UHUniversal 347-480V -Available only in 4L-21L lumen packages | DMDirect FM Flush Mount H6Car Wash HCHook & Cord PDPendant | BKBlack BZBronze SVSilver WHWhite | BLANKNon-Dimming 10V 0-10V Dimming - Control by others - Refer to Dimming spec sheet for details PML Programmable Multi-Level - Available with UL voltage only - Refer to PML spec sheet for details | 10KV 10kV/5kA Surge Suppression - Replaces standard 6kV surge suppression - Not for use with PML as PML option includes 10kV/5kA surge as standard HZ Class I, Div. 2 Hazardous Location Certification - Available with DM and PD mounts only - Not available with PML control or K option K NSF 2 Certification - Luminaires include NSF certification mark - Suitable for DM mount only - Not available with PML control or HZ option |
| CPY250 | B | A 60W 13L 91W B 96W C 31W E 145W F 85W | 30K3000K 40K4000K 57K5700K* *-Version B - Input Power designators 13L,B,E and F lumen Packages not availaible in 57K. See version C for equivalent alternative product | DDrop Lens FFlat Lens | UL Universal 120-277V UHUniversal 347-480V** **-UH version B only available in B,E and F input power designators.See version C for equivalent alternative product | DMDirect HCHook & Cord PDPendant | BKBlack BZBronze SVSilver WHWhite | DIM 0-10V Dimming - Control by others - Refer to Dimming spec sheet for details - Can't exceed wattage of specified lumen package/ Input Power Designat HZ Class I, Div. 2 Hazardous Location Certification - Available with DM and PD mounts only - Not available with K or PML option K NSF 2 Certification - Luminaires include NSF certification mark - Available with the DM mount only - Not available with the HZ or PML option PML Programmable Multi-Level - Available with UL voltage only - Refer to PML spec sheet for details |
Downloads
- Spec Sheets
- IES & Design Files
- Installation Guides
- Technical Documents
- Warranty
- Literature
| Title | Date Modified | Download |
|---|---|---|
| CPY250 Canopy-Soffit Spec Sheet Version B | 10/05/2021 | Download File |
| CPY250 Canopy-Soffit Spec Sheet Version C | 01/20/2022 | Download File |
Accessories & Options
| Product Image | Order # | Description | Spec Sheet | Install Guide |
|---|---|---|---|---|
 | XA-BXCCMW | Canopy Upgrade Kit (Direct Mount) | View All Downloads | |
 | XA-BXCCNW | Canopy Upgrade Kit (Direct Mount) | View All Downloads | |
 | XA-BXCCPW | Canopy Upgrade Kit (Direct Mount) | View All Downloads | |
 | XA-BXCCQW | Canopy Upgrade Kit (Direct Mount) | View All Downloads | |
 | XA-BXCCRW | Canopy Upgrade Kit (Direct Mount) | View All Downloads | |
 | XA-BXCCSW | Canopy Upgrade Kit (Direct Mount) | View All Downloads | |
 | XA-BXCCBPW | Direct Mount Beauty Plate | Download File | |
 | XA-BXCCBPB12W | Direct Mount Beauty Plate & Backer Plate | Download File | |
 | XA-BXCCBPB16W | Direct Mount Beauty Plate & Backer Plate | Download File | |
 | XA-BXCCJBOX | Direct Mount Junction Box/Stem Kit | Download File | |
 | XA-SENSREM | Hand-Held Remote | Download File | Download File |
 | XA-PS12KIT | Pendant Mounting Kits | Download File | |
| XA-PS18KIT | Pendant Mounting Kits | Download File | |
| XA-PS22KIT | Pendant Mounting Kits | Download File | |
 | CPY-AP304* | Canopy Upgrade Kit | Download File | |
 | DIM10-220F | Synapse® SimplySNAP 10V Interface | Download File | Download File |
